DaVinci Configurator

AutoC reads and writes ECUC configuration through Vector DaVinci Configurator. Configurator 5 only. You need the Configurator install directory and a project path that contains *.dpa.

Open the project and set paths

1. Open a project — pick the folder that contains *.dpa.
2. Open Settings → Install paths and set the Configurator install root (it contains Core/DVCfgCmd.exe).

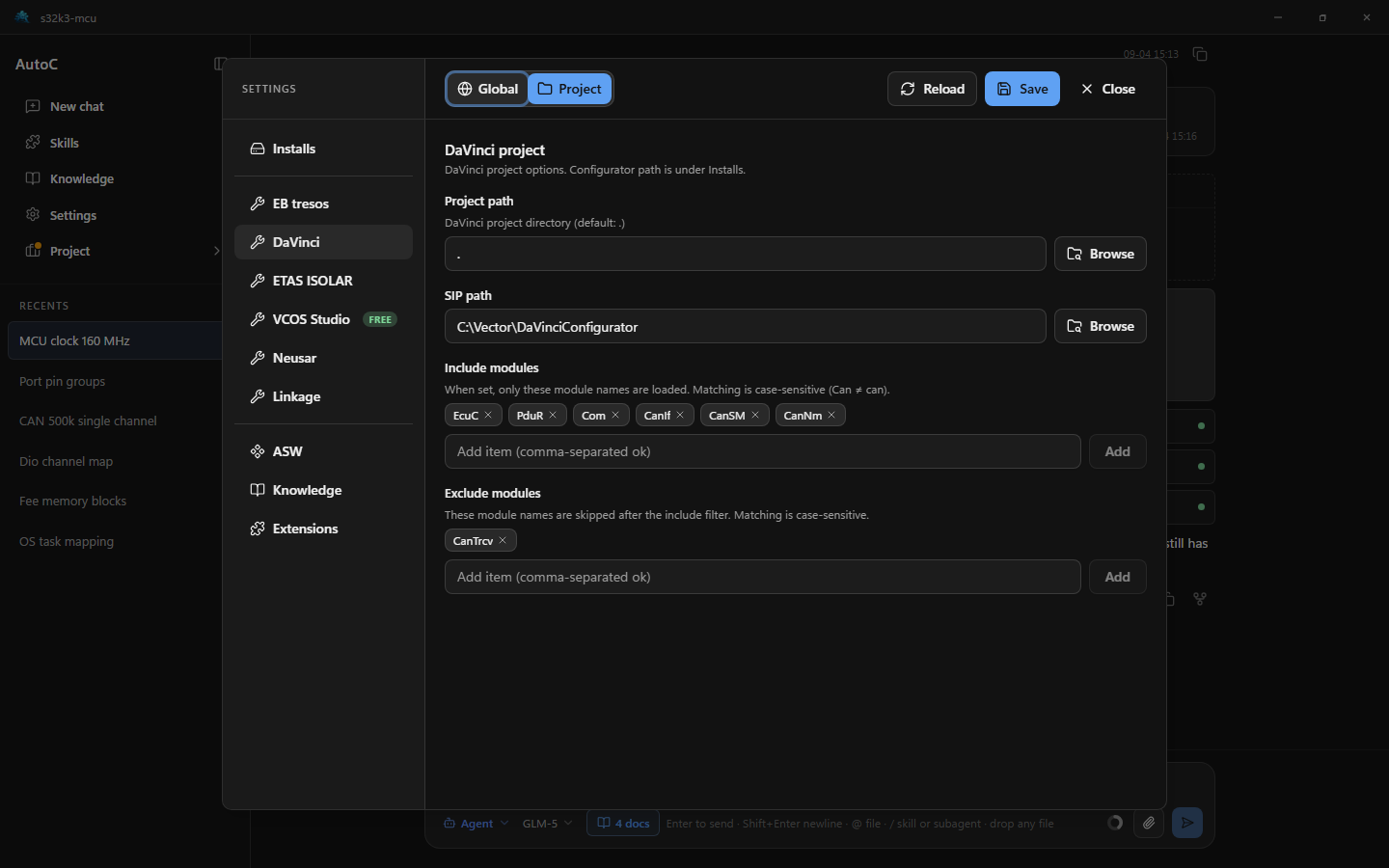

3. Open Settings → DaVinci, confirm the project path, and set SIP or include / exclude modules if needed.
4. Click Save, then Reload.

Success: a DaVinci card under Project → Project info.

Use Save and Verify on a module in Project info. Before verify, AutoC copies .dpa to *.autoc.dpa; scripts live in .autoc/davinci-scripts/ in the project.

Advanced

Module filters — Include modules / Exclude modules on Settings → DaVinci (case-sensitive).

ASW — foreign-reference enums; DaVinci also loads from .dpa ECUEX paths. See ASW.

Configuration sync

When several tools are used together, choose each module's owner under Settings → Module linkage. Saving the owner writes the shared parameters into the same module on the other tools. See Module linkage.

Open Configurator after save. If the window was already open, refresh or reopen the project.

The open folder must have both EB .project and DaVinci .dpa, and both paths must point at the same vehicle project.
